30L Submicron Grinding Horizontal Bead Mill for Grinding Water-Based Printing Ink/Solvent Ink/Water Based Paints/Solvent Paints

Basic Info

After-sales Service	1 Year
Warranty	1 Year
Separator Type	Static Type
Feeding Pump	Diaphragm Pump
Converter	Not Included But Optional
Grinding Parts	Rod Pin
Application 1	Water Paints
Application 2	Solvent Paints
Application 3	Water Based Printing Ink
Application 4	Water Soluble Fertilizer
Application 5	Pesticide Suspending Agent
Application 6	Sulphur Suspended Agent
Application 7	Graphene
Application 8	Color Paste
Application 9	Dyes
Application 10	Car Paints
Transport Package	Wooden Case Package
Specification	50
Origin	China
HS Code	8479820090
Production Capacity	100 Sets Per Month

Product Description

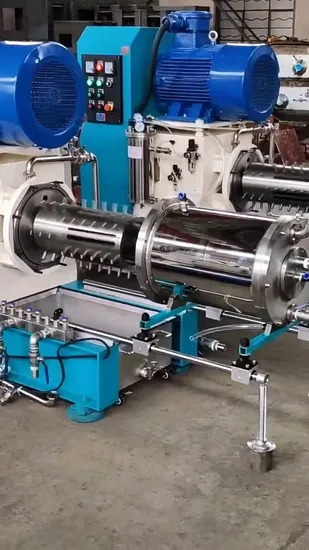

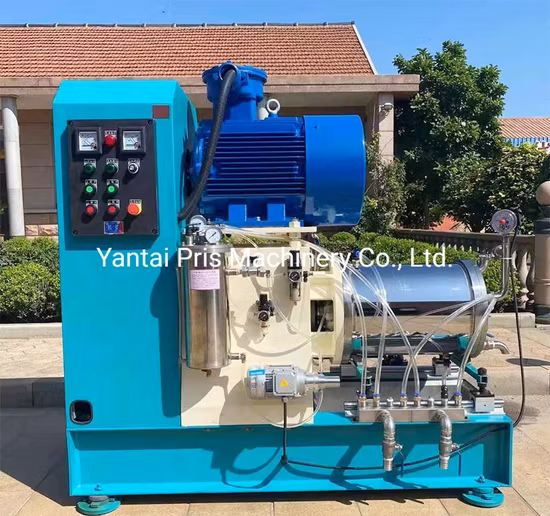

Model:PSM-R-30L

It is a large flow ultra-fine type horizontal bead mill.

The materials to be ground are input into the grinding chamber through the feeding pump (gear pump or diaphragm pump), and together with the grinding beads in the grinding chamber are stirred by the rotating rod-pin type rotor.

Under the action of the high-speed rotating agitator, the solid particles and the strong impact and shear are generated between the agitator and the grinding beads, and the material to be ground is quickly scattered and broken to achieve the purpose of grinding.

The ground material moves to the discharge port under the action of the pressure in the grinding chamber, and the grinding beads and the material are separated through the static separation screen.

The material is finally sent out through the discharge pipe to complete a cycle, and the fineness of the material can meet the requirements after testing. Enter the next process, if you need finer quality, you need to continue pumping into the grinding chamber for grinding again.

Structure

Our Machines in User's Factory
